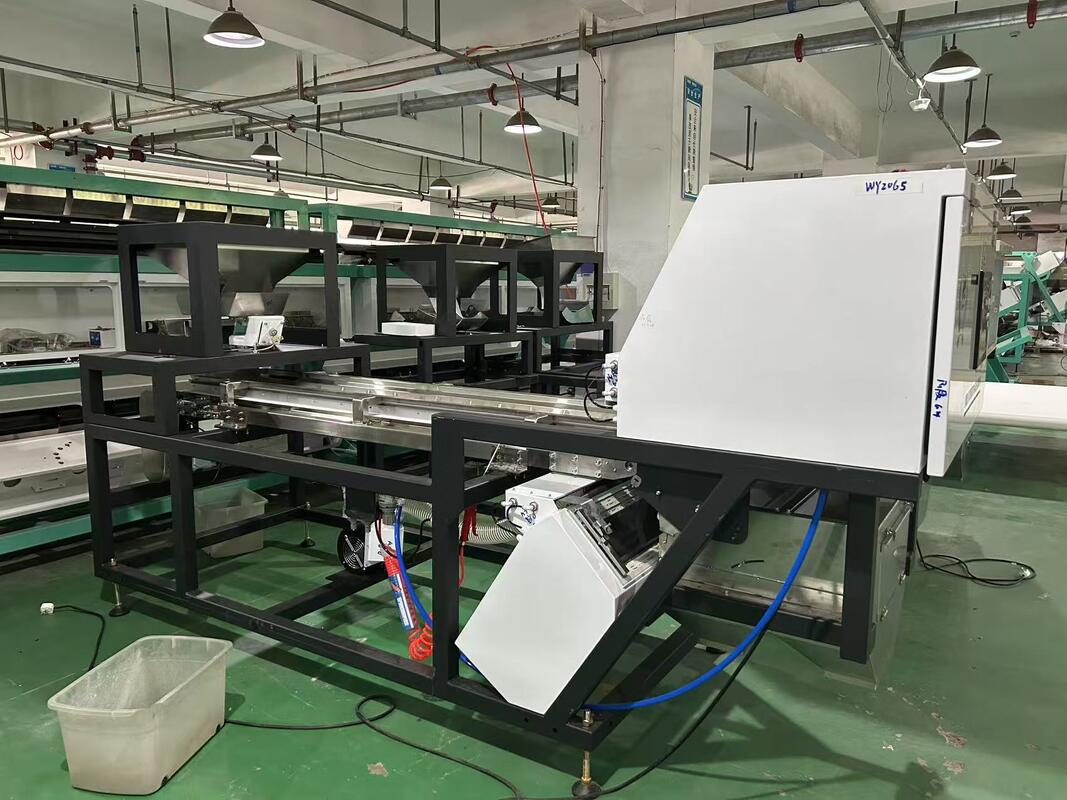

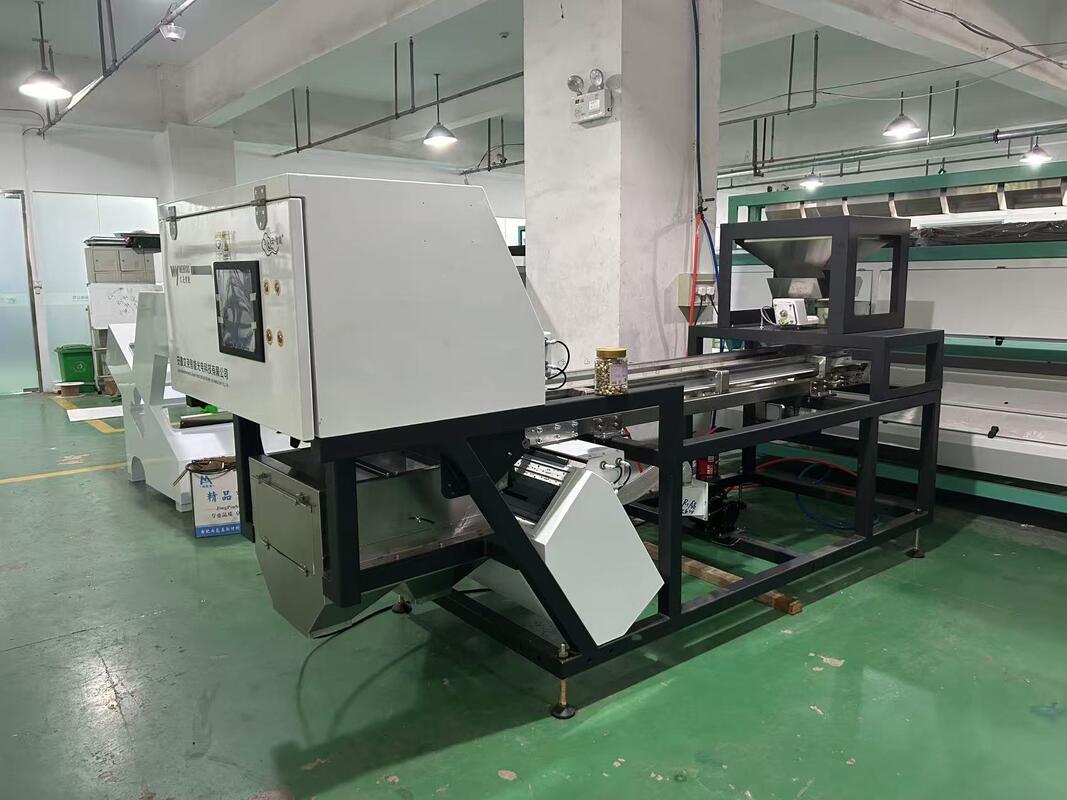

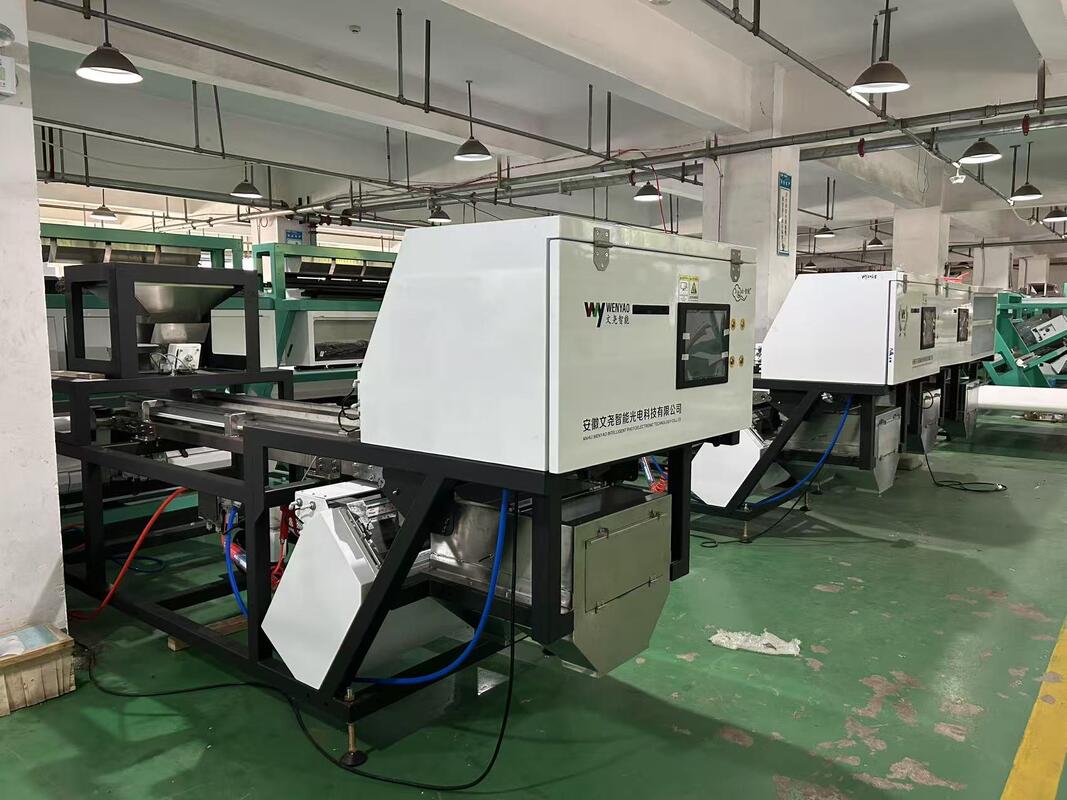

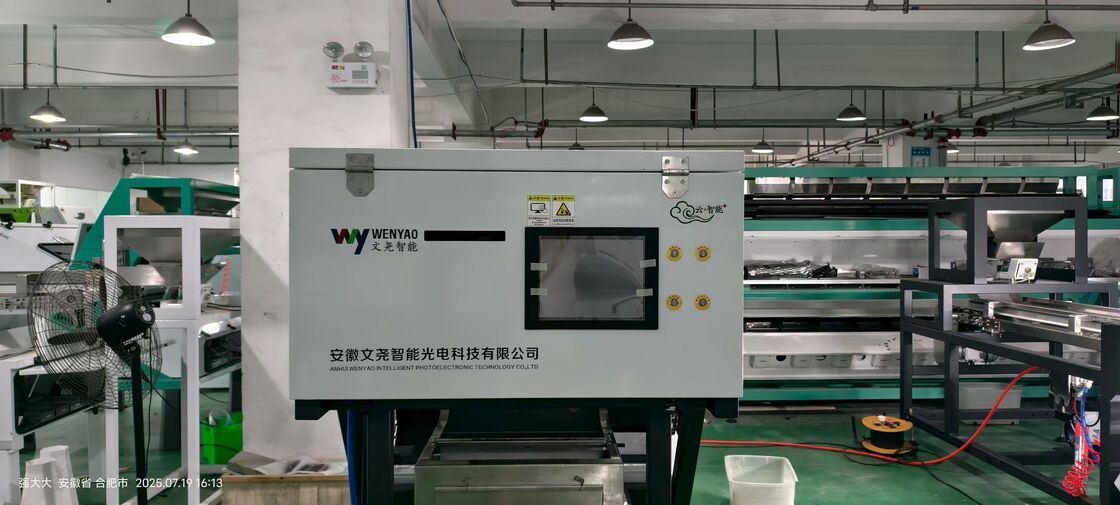

Pixel WENYAO CCD Optical Peeled Garlic Peanut Macadamia Nuts Pistachio Unpeeled Garlic Colour Sorting Machine

Pixel WENYAO CCD Optical Peeled Garlic Peanut Macadamia Nuts Pistachio Unpeeled Garlic Colour Sorting Machine

• Customized image algorithm

  Advanced image algorithm, which can customize specific algorithm according to different sorting materials: color sorting and shape sorting available.

• Full color CCD cameras

  Wenyao vision system converts the captured targets into image signals through CCD cameras, and then transmits the signals to a dedicated image processing system.

  The high resolution CCD color cameras with sharpness up to 0.01mm2 can identify subtle color differences and defects successfully.

• Lower damage ratio by Belt-type structure design

  Horizontal transporting by uniform and stable conveyor makes less collision for the materials. So that its damage ratio is much lower than that of traditional chute-type color sorter.

• Intelligent real-time display of actual material image

  Real-time checking the targets marking situation is available on the 21-inch LED computer screen through the real-time display system of actual material image, which is easy for engineers to adjust sorting parameters both on site and by remote.

• Long life and full color LED light source

  With uniform color, high brightness, and long life when using the white LED light source in our full colored color sorters.

• Remote interconnection system

  Remotely diagnoses each color sorter and assist with equipment operation are available after obtaining customers’ authorization.

• The most advanced water-air combined dust removal system

  Clean the upper and lower visual glass by water or by air according to different sorting material; Angelon’s UNIQUE design of water roller washing and cameras box moving behind can make sure the continuous sorting of special materials which has oil, water, power, etc.

• Precise target technology

  Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD cameras and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover a lot.

• Waste treatment system

  Use the latest waste treatment program to accurately identify and eliminate unpeeled garlic in the rejects, so that can reduce a lot labor costs.

• High-quality customized valves

  With high frequency and strong motivation, they can accurately blow off some high density materials like minerals, waste metal flakes, etc.

• Uniform feeding system

  Different vibrators are used for different materials. Angelon used motor vibrators and electromagnetic vibrators to ensure smooth feeding for different materials.

•

Examples of color sorting:

From Customer's Site:

Questions :

1. How about engineers service oversea?
    Engineers available to service machinery overseas.

2. How to use the machine?
    We will supply customer the installation catalog or video online.
    We will ask our engineer to teach you, how to use when he go to your country to debug the machine.


3. How about the sample machines for testing?
   Sample sending for testing is welcomed.
   Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.

4. How about the guarantee period?
   One year.

5. Will you accept L/C as payment?
   L/C ,T/T is OK .
   Alibaba Trade Assurance is your best choice.

6.Do you have any other spare parts for the customer?
   Yes,we will supply you some spare parts .

7.Which machine will work together with our color sorter which you can supply?
   Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
