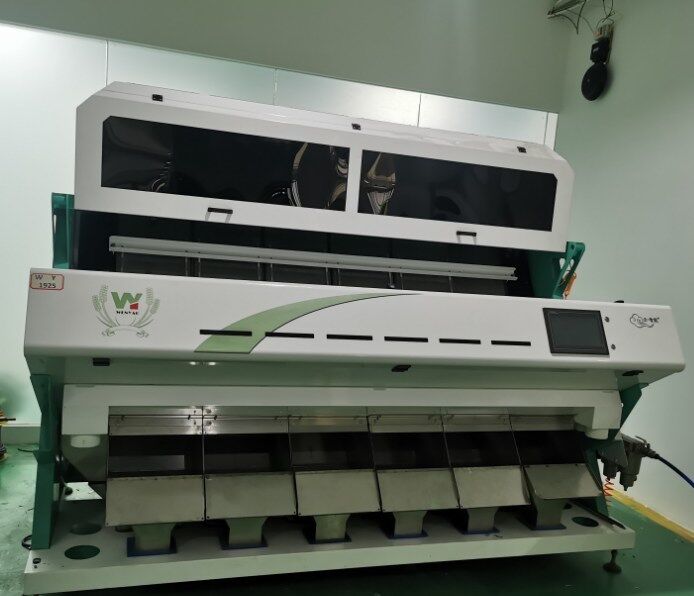

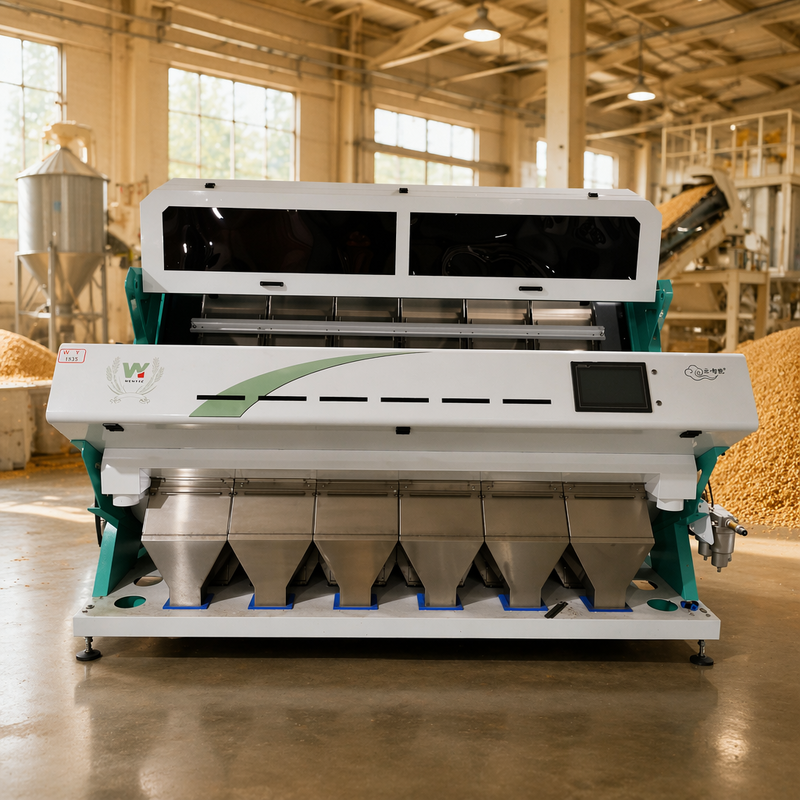

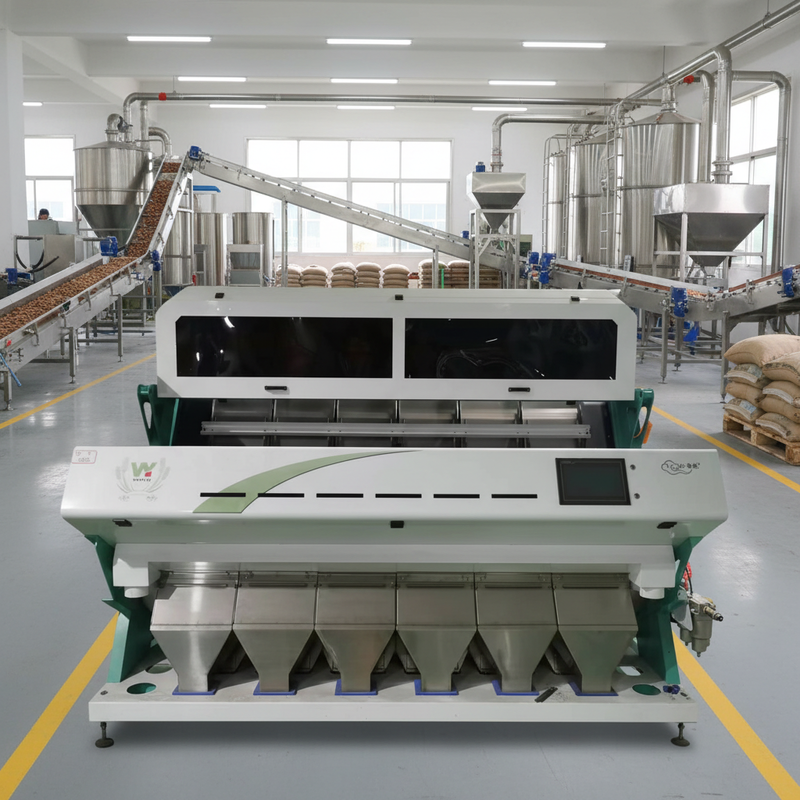

Wenyao High Technology Coffee Color Sorter Machine White Beans CCD Optical Color Sorter Mung Beans Peas Chickpeas
Color Sorter Technical Features :
| MODEL |
WYCS6-384 |
| Chutes/Channels |
6/384 |
| Throughput(t/h) |
1-2t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
3.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<3.2M3/Min |
| Weight |
1100kg |
| Diamension(L*W*H) |
2595*1540*1852mm
|
Color Sorter Machine for Walnuts, Almond, Pistachio Separation
*Nuts Defects Sorting through High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Nuts Colour Sorting With Expert Sorting Solution Realizes One Key Debugging
The Color sorter work principle:
Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Attending Fair :
Frequently Asked Questions:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
6.Will you test machine before delivery ?
Yes , we will test carefully before delivey ,and save parameters in the machine
Why Choose Wenyao Color Sorter?
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
